Non Clog Sewage Pump (VNCS SERIES)

Our Product

...........................................................

...........................................................

...........................................................

...........................................................

...........................................................

...........................................................

...........................................................

PRODUCT SPECIFICATION

The “VIRAJ” Pump make “VNCS” Series is designed in single stage submersible Non-clog Sewage pump of close coupled vertical ( mono-block type) construction.
"VIRAJ" non clog submersible sewage pump offer simple the most economical and most reliable way of solving the pumping and disposal of sewage containing suspended solids, pumping of raw unscreened sewage and effluent, storm water , sand with water as well as raw and waste water containing large solid objects.. "VIRAJ"S rich experience over several year in the filed of designing and manufacturing of varieties of reliable and efficient pump which need practically no maintenance . These pump compactly designed pump are easy to handle and can be installed permanently with the help of automatic coupling in a small sump form where sewage is to be pumped or can be use portable duty .Being submersible they do not require any other pump house. Vncs Series

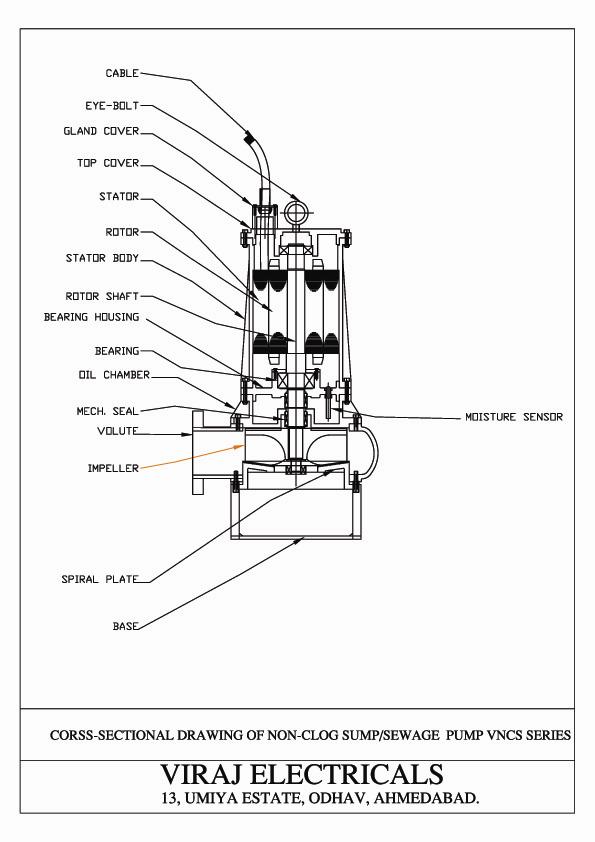

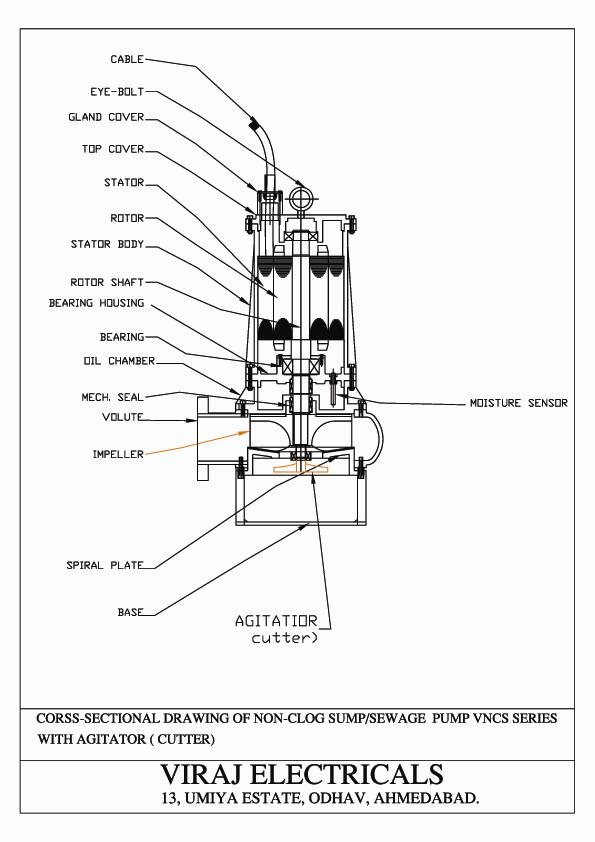

Cross Section1 Cross Section2 Performance
"VIRAJ" Pump available with Single Vane/ Two Vane /Three Vane/Vortex/Channel for different application.
"VIRAJ" Pump motor squirrel cage high troque induction motor with class "F" insulation . Our motor are shrink fitted in the stator housing thus ensuring maximum heat dissipation with low temperature rise ,stator triple impreganated capable up to max. start/stop .
"VIRAJ" pump motor equipped with inbuilt winding prevent over heating – thermistor protection and also moisture sensor for leakage in stator housing .
Advantages of "VNCS"
Heavy duty design
Flood proof pumping stations - even in large scale floods
High pump efficiency is sustainable over longer periods
Lower construction cost
Zero Routine maintenance
Noiseless Pumping Stations
Enables maintenance at site
New scope of reduction of volume of wet well
Lowest Life Cycle Costs
Reduction in operational manpower
Tolerates wide electrical supply fluctuations

TECHNICAL DATA
RANGE : 3.0 HP TO 75.0 HP
HEAD : UP TO 90 MTR.
CAPACITY : UP TO 650 M3/HR
SOLID SIZE : UP TO 125 mm (suspended solid)
SPEED : 2850 rpm/1440 rpm/960 rpm
CONTROL : THERMISTOR & MOISTURE

MATERIAL OF CONSTRUCTION
PUMP CASING : C.I. /S.S.( OPTIONAL)
IMPELLER : C.I./S.S.316/CF8M/S.S.410/S.S.304 /AS PER CUSTOMER REQ.
SHAFT : S.S.410/S.S.431
MOTOR BODY : C.I.
MECH. SEAL : Tungsten Carbide/Tungsten Carbide or As per Application
Hardware : Stainless Steel
Rubber Part : Nitrile / Witon Rubber /As per Req. Application.
**** Also available DRAGING PUMP in Same product for silt or sand handling application with customer required material of construction.*****

APPLICATION AREA
• Steel Plant & Power Plant • Pharmaceuticals & Bulk Drugs
• Refineries • Paints & Dyes
• Effluent Treatment • Chemical Industires
• Petrochemicals • Sugar & Mining
• Construction • Municipal corporation/Nagar Palika
• Desalination • Raw Water Handling etc.
