Portable Dewatering Pump (EJ/MJ/VDX SERIES)
Our Product
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
PRODUCT SPECIFICATION |
|
| The “VIRAJ” make “EJ/MJ/VDX” series is designed in single stage,Centrifugal by A.C. squirrel cage induction motor in a fully submersible dewatering pump of close coupled vertical ( mono-block type) construction. They are easily transportable and have a wide variety of applications. | |
| These are powerful submersible dewatering pumps designed for draining abrasive water from construction sites, mines, docks, flooded areas, basement dewatering etc. These easy-to-install pumps are often used in tunneling and mining where the reliability of the equipment is a crucial parameter. The pumps have an excellent performance capacity with high motor power combined with compact light weight design |  |

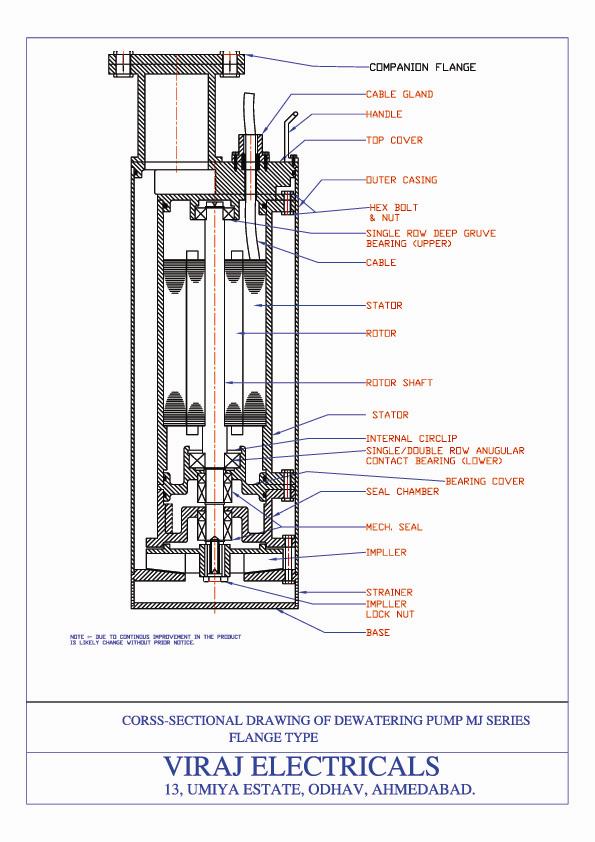

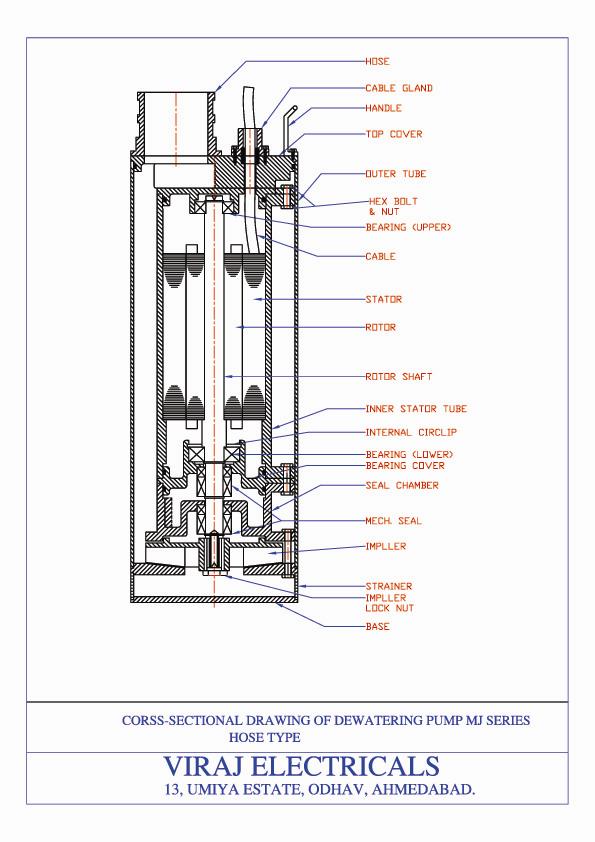

| Cross Section1 | Cross Section2 | Performance |
| Design Features :- | |
| • | These pumps are specially designed for Raw water , Rain Water , Treated ETP water with small ( EJ SERIES – UP TO 10 MM , MJ/VDX SERIES - particle size ( up to 35 mm) |
| • | These pumps are offer with semi open type impeller( non -clog free flow type)/Channel /Close made in S.S 304 /316/C.I.. |
| • | These pumps are design easy to maintenance at site |
| • | These pumps are Light Weight and Compact Design compare to others |
| • | These pumps are equipped with double mechanical seal & ball bearing |
| • | These pumps are also available with built in thermal protection ( OPTIONAL) & Moisture protection ( OPTIONAL) |
| • | These pumps motor are available in Dry Winding(Super Enameled) & MJ/VDX Series also available in Wet Winding(P.V.C.Wdg. Wire) |
| Advantages of "Viraj" EJ/MJ/VDX SERIES | |
| • | Available in both 1450 and 2900 RPM ( MJ & VDX SERIES ONLY) ( EJ Series available only in 2900 rpm ) |
| • | Robust construction |
| • | Can work under flooded or partially submerged conditions |
| • | Motors are oil filled and oil lubricated ( only in P.V.C. wound motor & In Dry motor Optional) |
| • | Compact and light weight |
| • | Impellers dynamically balanced & Impellers are in open / semi open / non clog design |
| • | Motor cooling ensured by the liquid being pumped |
| • | Impellers in hardened steel or CF8M or as per application requirement. |
| • | Reduction of construction cost. |
| • | Motor has an extra overload inbuilt capacity |
| • | Shaft supported on two ball bearings |
| TECHNICAL DATA | |
| RANGE | : 0.75 HP To 75.0 HP |
| HEAD | : UP TO 100 MTR. |
| CAPACITY | : UP TO 450 M3/HR |
| SOLID SIZE | : UP TO 35 mm (suspended solid) |
| SPEED | : 2850 rpm/1440 rpm |
| CONTROL | : THERMISTOR & MOISTURE ( OPTIONAL ) |
| MATERIAL OF CONSTRUCTION | |
| PUMP CASING | : C.I. /S.S./ ALLU.( OPTIONAL) |
| IMPELLER | : C.I./S.S.316/CF8M/S.S.410/S.S.304 /AS PER CUSTOMER REQ. |
| SHAFT | : S.S.410/S.S.431 |
| MOTOR BODY | : C.I. ( EJ SERIES ) , S.S. /M.S. ( MJ SERIES) , M.S.
FABRICAED ( VDX SERIES) / AS PER REQ. |
| MECH. SEAL | : Tungsten Carbide/Tungsten Carbide or As per Application |
| Hardware | : Stainless Steel |
| Rubber Part | : Nitrile / Witon Rubber /As per Req. Application. |
| APPLICATION AREA | ||
| • Water Supply Schemes | • Dewatering of mines and pits | |
| • Construction Sites | •Desilting Operations | |
| • Effluent Treatment | •Building dams, harbours and tunnels | |
| • Water Treatment | • Chemical Industry | |
| • Steel Industry | • Flood water control | |
| • River water | • Irrigation, etc. | |
