Centrifugal Pump (VCCP SERIES)
Our Product
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
PRODUCT SPECIFICATION |
|
| The "VIRAJ" make "VCCP" Series is radial split Backpull out design process and clear water pump consisting of 35 model with six group of bearing housing for minimum inventory of spares. Standard design is foot mounted, In this design for the facility of maintenance to easily removed without disturbing the motor form the base frame & the pump casing fixed to the pipe line. |  |

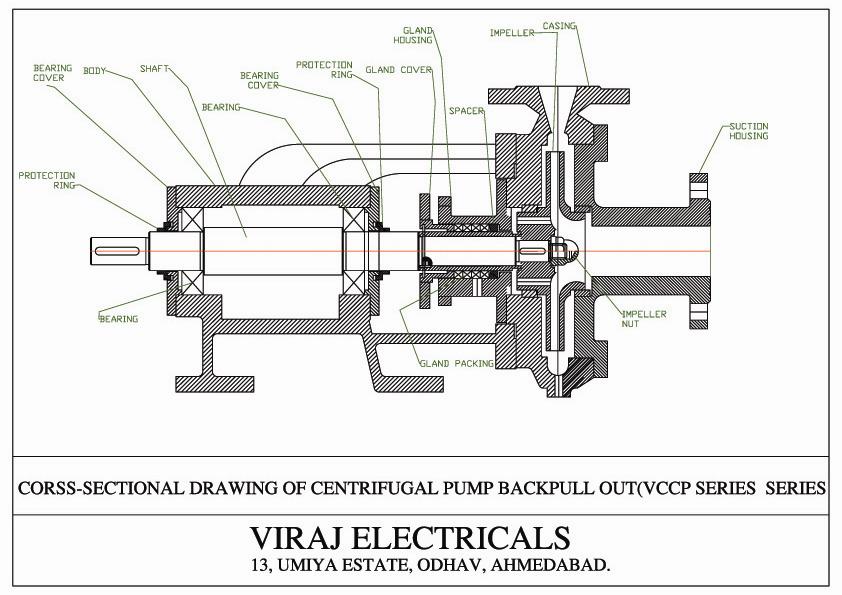

| Cross Section1 |
| Performance 1 | Performance 2 | Performance 3 | Performance 4 | Performance 5 | Performance 6 |
| Design Features :- | |
| • | Available in 960, 1450 & 2900 RPM |
| • | Back pullout design for ease of maintenance |
| • | Horizontal jacketed, centre line supported process pumps offered for handling high temperature liquids / oils |
| • | Shaft sealing with gland packing single or double mechanical seal |
| • | Standard and special materials |
| • | Closed or semi open impeller |
| • | Custom engineering to meet customer requirements |
| • | Maximum interchangeability of components is possible for a particular series, resulting in lower inventory of spares |
| TECHNICAL DATA | |
| RANGE | : UP TO 100 kw |
| HEAD | : UP TO 220 MTR. |
| CAPACITY | : UP TO 100 M3/HR |
| PRESSURE | : UP TO 40 KG/CM2 |
| SPEED | : 2850 rpm/1440 rpm/960 rpm |
| TEMP | : UP TO 450 DEGREE C. |
| SEALING | : GLAND/MECH. SEAL |
| DEL. SIZE | : 25 MM TO 250 MM |
| MATERIAL OF CONSTRUCTION | |
| • C.I. AS PER IS 210 ( WITH REQURE AS PER APPLICATION GRADE) | |
| • CAST STEEL –ASTM 216 GRADE WCB | |
| • BRONZE – IS 318 GR. LTB- II | |
| • STAINLESS STELL – ASTM -743 , CF8M, | |
| • ALLOY 20 – ASTM – 743 ,CN7 | |
| • MONEL | |
| • CD4MCU | |
| APPLICATION AREA | ||
| • Acid | • Alcohol | |
| • Cooling Tower | • Fire System | |
| • Steel plant | • Paper /Plup mill | |
| • Chemical Industry | • Power Plant | |
| • Water supply | • Process Industries | |
| • Brine, etc. | ||
| ACCESSORIES | |
| • COUPLING | • MOTOR |
| • BASE FRAME | • VIRBATING PAD |
| • FLANGE | • TROLLY |
| **** Also we are made pump as per customer design ( tailor made type ) – as per customer drawing ***** |
