Portable Drainage Pump (MS/MV Series)
Our Product
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
...........................................................
PRODUCT SPECIFICATION |
|
| The “VIRAJ” make “MS/MV” series is designed in single stage,Centrifugal by A.C. squirrel cage induction motor in a fully submersible dewatering pump of close coupled vertical ( mono-block type) construction. | |
| These are powerful submersible drainage pumps designed for draining abrasive water from construction sites, mines, docks, flooded areas, basement dewatering , hotel ,manhole, small pit, tranches etc. These easy-to-install pumps are often used in tunneling and mining where the reliability of the equipment is a crucial parameter. The pumps have an excellent performance capacity with high motor power combined with compact light weight design. |  |

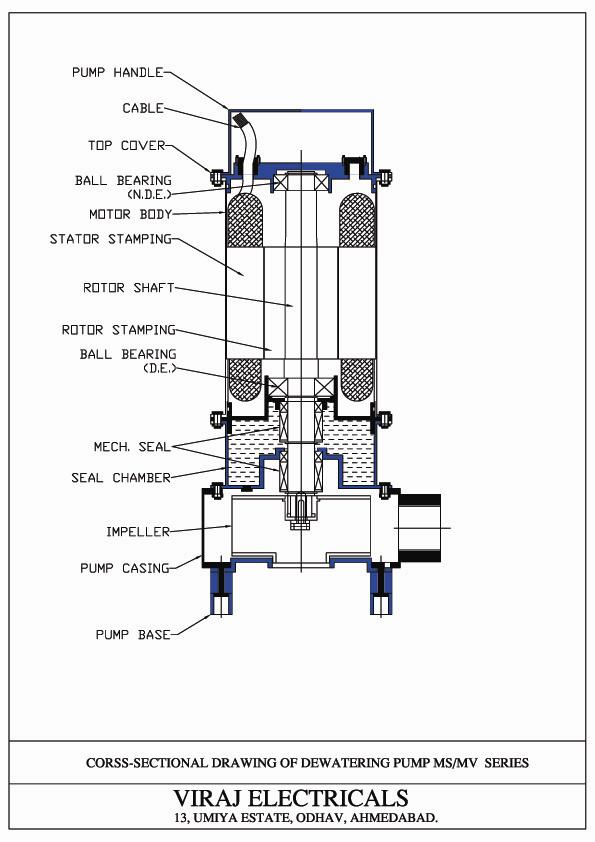

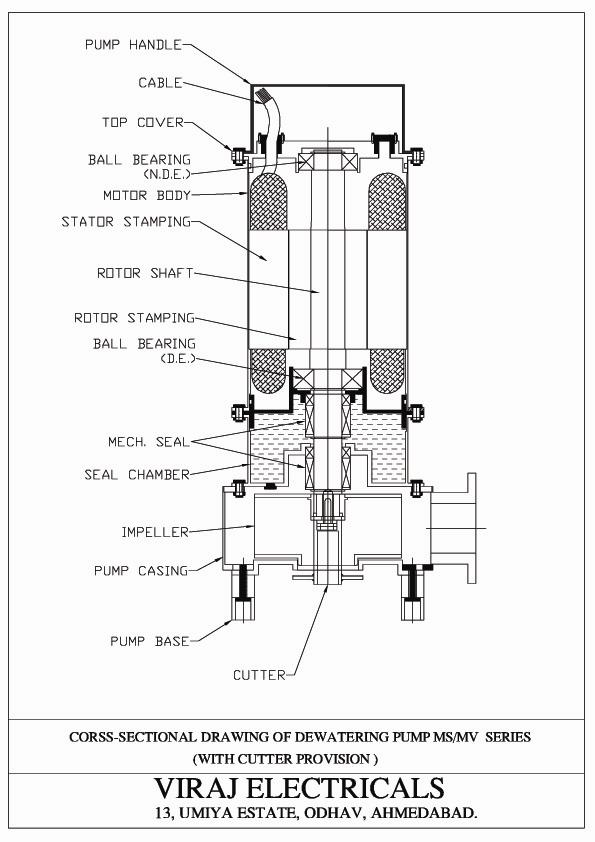

| Cross Section1 | Cross Section2 | Performance |
| Design Features :- | |||
| • | These pumps are specially designed for Raw water , Rain Water , Treated ETP water with small particle size 6 mm to 35 mm. | ||
| • | These pumps are offer with vortex type impeller( non -clog free flow type)/Channel /Close made in S.S 304 /316/C.I.. | ||
| • | These pumps are design easy to maintenance at site | ||
| • | These pumps are Light Weight and Compact Design compare to others | ||
| • | These pumps are equipped with double mechanical seal & ball bearing | ||
| • | These pumps are also available with built in thermal protection ( OPTIONAL) & Moisture protection ( OPTIONAL) | ||
| • | These pumps motor are available in Dry Winding(Super Enameled) | ||
| • | These pumps are available in single phase ( up to 2.0 hp ) & three phase . | ||
| • | These pump are available with float switch ( single phase model). | ||
| Advantages of "MS/MV" | |||
| • | Available in both 2900 RPM & 1440 rpm ( 3.0 hp & 5.0 hp) | ||
| • | Available with fully S.S. construction. | ||
| • | Zero Routine maintenance | ||
| • | Enables maintenance at site | ||
| • | Tolerates wide electrical supply fluctuations | ||
| • | Compact and light weight | ||
| • | Robust construction | ||
| • | Shaft supported on two ball bearings | ||
| TECHNICAL DATA | |
| RANGE | : 0.75 HP To 5.0 HP |
| HEAD | : UP TO 30 MTR. |
| CAPACITY | : UP TO 90 M3/HR |
| SOLID SIZE | : UP TO 35 mm (suspended solid) |
| SPEED | : 2850 rpm/1440 rpm |
| CONTROL | : THERMISTOR & MOISTURE |
| DEL SIZE | : 1"/1.5"/2"/3"/4" |
| MATERIAL OF CONSTRUCTION | |
| PUMP CASING | : C.I. /S.S. OR M.S. FABRICATED |
| IMPELLER | : C.I./S.S.316/CF8M/S.S.410/S.S.304 |
| SHAFT | : S.S.410/S.S.431 |
| MOTOR BODY | : S.S. OR M.S. FABRICATED |
| MECH. SEAL | : Tungsten Carbide/Tungsten Carbide or As per Application |
| Hardware | : Stainless Steel |
| Rubber Part | : Nitrile / Witon Rubber |
| APPLICATION AREA | ||
| • Water Supply Schemes | • Dewatering of mines and pits | |
| • Construction Sites | • Hotel, Garden ,Flooded clear water | |
| • Effluent Treatment | • Harbours and tunnels , trehches | |
| • Water Treatment | • Chemical Industry | |
| • Steel Industry | • Flood water control | |
| • Irrigation, etc. | ||
